WSPS-2450-20kW solid state power generator is specifically used for solid state microwave equipment in ISM field，to provide CW/PULSE adjustable power of 100W-20kW with center frequency 2450MHz
> PLL phase-locked technology ensure a high frequency stability；
> Built in circulator and load enable the SSPG adapt to kinds loads that have different VSWR；
> Reasonable protection circuit guarantee a reliable operation.
| Item | Min. | Typ. | Max. | Unit. |
|---|---|---|---|---|
Frequency | 2450 | MHz | ||
| Frequency Stability | 50 | ppm | ||
MW leakage | 2 | mW/cm² | ||
Power Stability | 1 | 3 | % | |
Output Power | 100 | 20000 | W | |
Output Power Adjustment Step | 1 | W | ||
Output phase（optional） | 0 | 360 | ° | |
| Phase adjustable step（optional） | 5.6 | ° | ||
Harmonic | -30 | dBc | ||
Stray | -50 | dBc | ||
Output impedance | 50 | Ω | ||
Operation temperature | 5 | 40 | ℃ | |
Overall efficiency | 40 | % | ||
Cooling way | water |
Continuous wave
Pulse wave
Continuous wave and Pulse
Control: equipment working status and parameter setting, can view the working status information and configure the working parameters remotely;
Alarm: output power, SWR, current, temperature, can view the alarm information remotely;
Protection：over-VSWR,over-temperature,over-input power,over-current,over-voltage protection. The system will shut off the RF output when under protection.

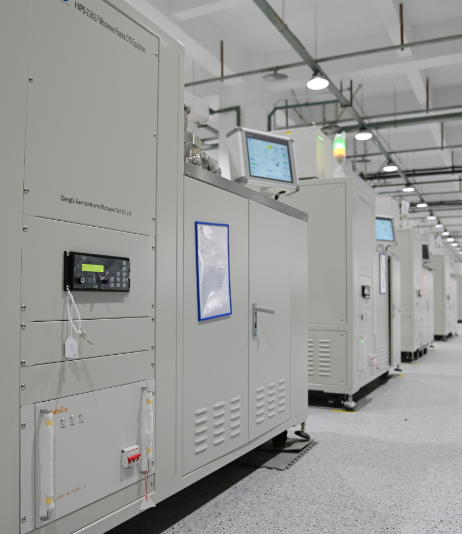

Microwave plasma chemical vapor deposition
Industrial heating, drying

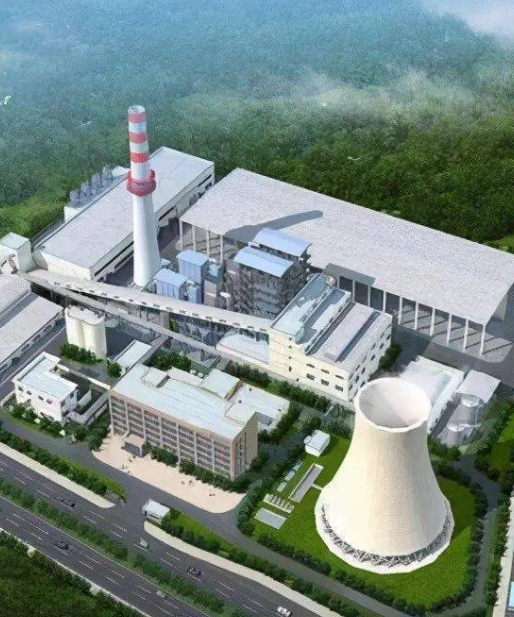

Industrial solid waste treatment (coal ash curing, waste liquid treatment)
microwave sintering

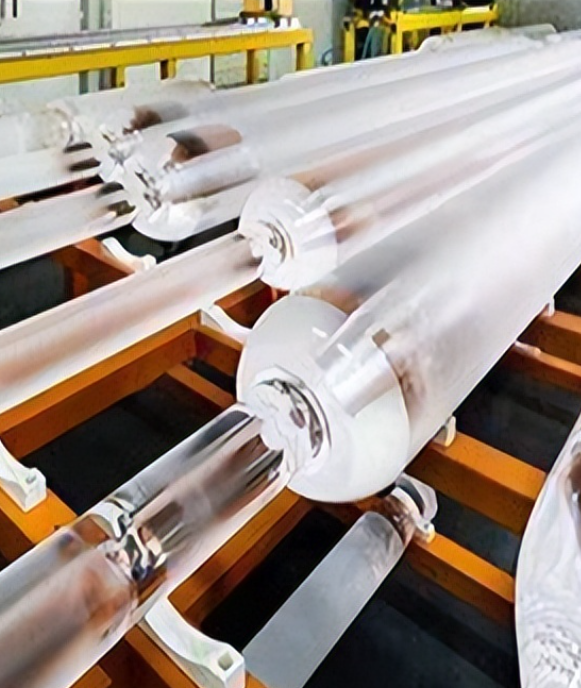

Fiber Preform
