Products> Particle accelerator solid state power amplifier > 1.3Ghz-30kW Particle accelerator solid state power amplifier
1.3Ghz-30kW Particle accelerator solid state power amplifier
1.3Ghz-30kW solid state power amplifier
1.3Ghz-30kW Particle accelerator solid state power amplifier

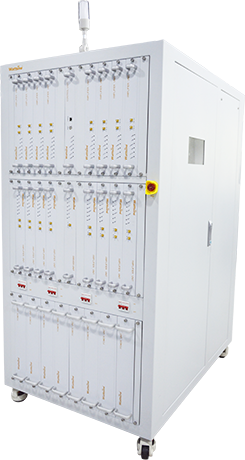

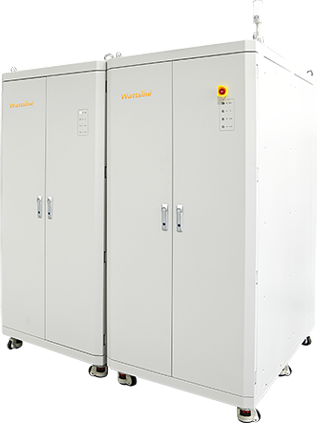

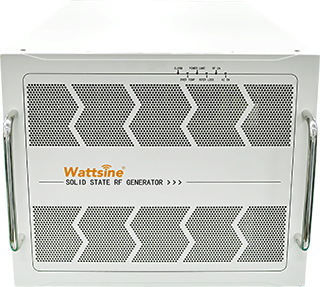

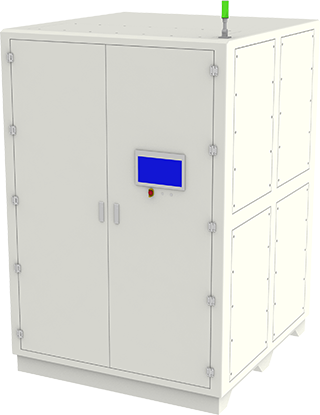

1.3GHz-30kW solid-state power source amplifier is a product developed for professional application in the field of particle accelerators, which can provide continuous wave or pulsed power from 1kW to 30kW.

* Continuous adjustment of output power, 0-360° adjustment of output phase, and adjustable duty cycle in pulse mode are possible.

* Also has after internal hardware and software feedback control to further improve the stability of power, frequency, phase and other parameters.

* Wattsine particle accelerator dedicated power source has built-in circulators and passive loads to accommodate a wide range of VSWR load applications and has comprehensive protection features with complete protection mechanisms and controls.

Frequency, power and pulse characteristics can be customized according to customer requirements.

Technical Index
ItemMinTypicalMaxUnits
Frequency
1300
MHz
Open loop amplitude short stable
0.1
%
Openg-loop phase short-strable
0.1°

Output power@1dB
30
kW
Phase noise

-78dBC/Hz
Spurious

-75dBC
Harmonics

-30dBC
Duty Cycle1
100%
Output VSWR
1.5Open Circuit
Operating temperature5
40
Overall efficiency
45
%
Output Interface
WR650 Waveguide

Functional characteristics

Control: equipment working status and parameter setting, can view the working status information and configure the working parameters remotely;

Alarm:output power,SWR,current,temperature under detection. Alarm information can be checked remotely;

Protection:over-VSWR,over-temperature,over-input power、over-current,over-voltage protection.The system will shut down the RF output automatically when under protection.

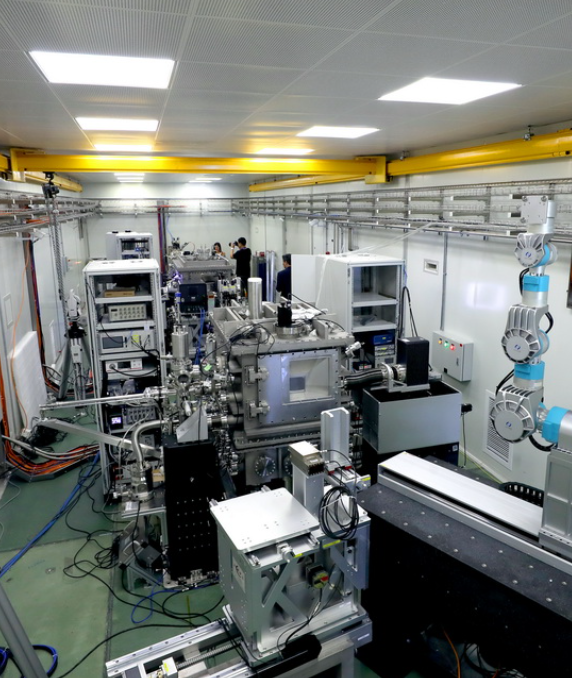

Applications

Hard X-Ray Imaging

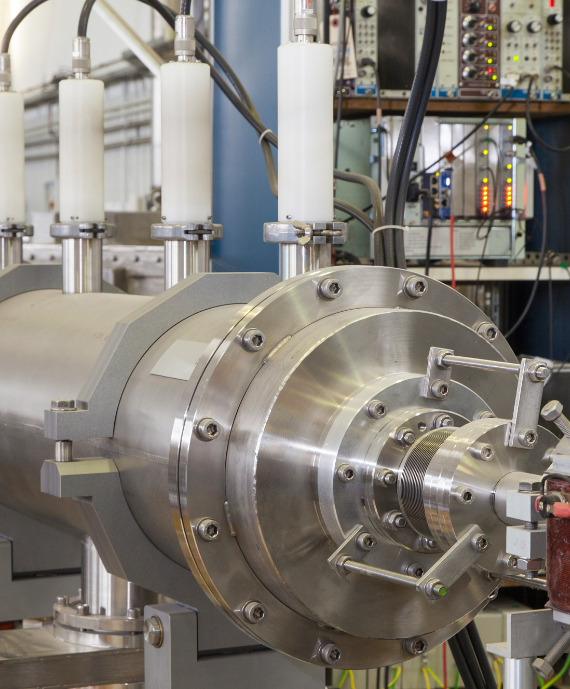

Large particle acceleration equipment components

Nuclear Magnetic Resonance Auxiliary Equipment
